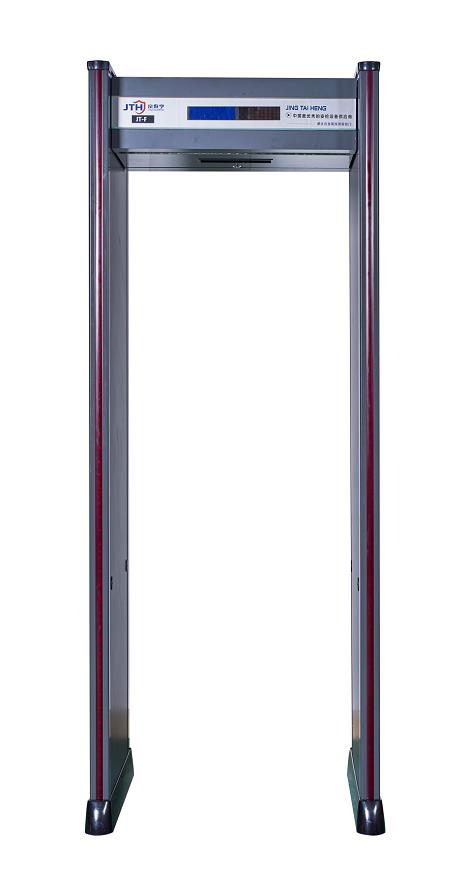

Walk-through Metal Detector

Model No.: JT-F

★   Perfect weather-proofing design for outdoor use

★   Easy to Install, Simple to Operate

Technical specification

☆   Electric current: AC215V~230V   50/60Hz

☆   Power: 35W

☆   Work environment: -20℃~+45℃

☆   Gross Weight: 95kg

☆   Outer frame: 2220mm (h) x 820mm (w) X 610mm (d)

☆   Inner frame: 2000mm (h) X 700mm (w) X 610mm (d)

Characteristic:

☆   18 Pinpoint zones to precisely identify multiple target locations from head to toe.

☆   Advanced broadband detection technology: can detect ferrous and Non-ferrous articles.

☆   Sensitivity adjustable from Level 0 o 2999  High: Can detect a pinLow: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.

☆   Shock proof to avoid false alarm

☆   Sound and light alarm

☆   Tamper-Proof: operate program is protected by password.

☆   Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.

☆   Tamper-Proof: operate program is protected by password.

☆   Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources

☆   Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity

☆   Harmless to pregnant woman and heart pacemaker.

☆   Four LED light barson both door panels: gives alarm corresponding to the height or human body.

☆  With Remote controller / LCD screen show operate steps in English and Chinese

☆  Superior Versatility: Settings designed for airports, courthouse, Sports meeting, Casino, Electronics factory and Hardware factory.

☆  Networking: Remote ability with Desktop Remote Control. ( Optional )

☆  Perfect Water proof design: Can work in heavy rain.

Standard:

★  In accordance with: EN60950, WN50081-1, And EN50082-1

★  CE Certificate; ISO 9001:2000 Certificate, National standard

Function: Walkthrough Metal Detector can easily detect weapons, such as knife and gun, and any metal article which is hidden in human body.
